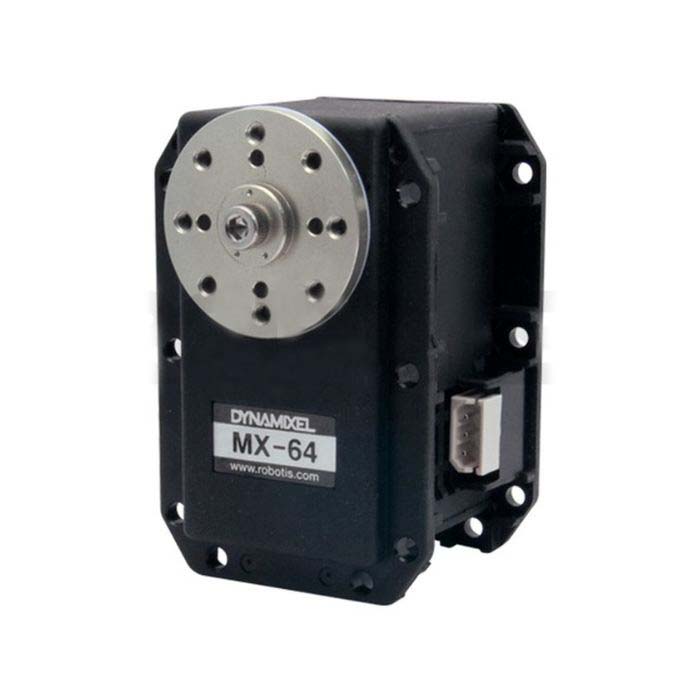

Product Description
Features
- DYNAMIXEL is a robot-exclusive smart actuator with a fully integrated DC Motor + Controller + Driver + Sensor + Reduction Gear + Network in one DC servo module.
- MX-series is a new concept of DYNAMIXEL with advanced functions, such as precise control, PID control, 360-degree position control, and high speed communication.
- Advanced durability, degree of precision, and wider control zone were achieved thanks to the newly applied CONTACTLESS ABSOLUTE ENCODER
- 360 degrees POSITION CONTROL without dead zone
- 4,096 PRECISE RESOLUTION by 0.088 degrees
- SPEED CONTROL at ENDLESS TURN MODE
- Reliability and accuracy were advanced in the position control through PID CONTROL
- High baud rate up to 4.5Mbps
- Torque control via current sensing

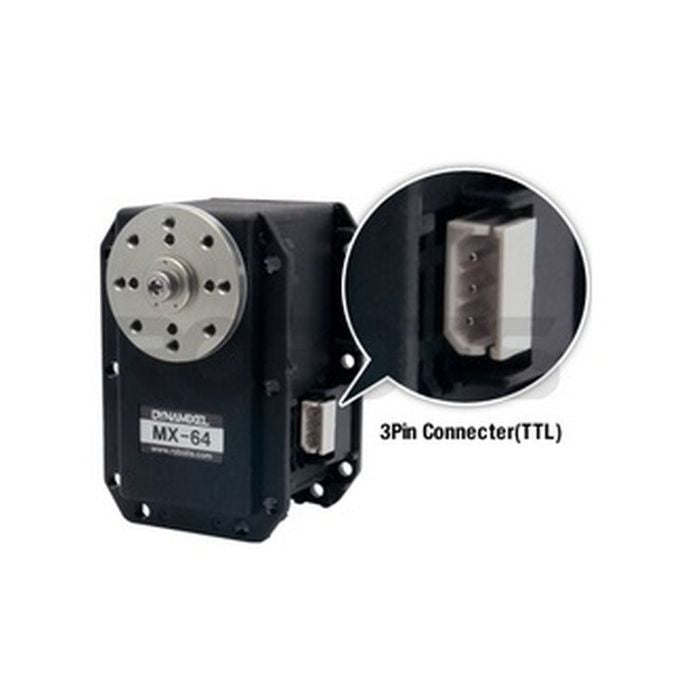

Package Components
- MX-64T 1
- HN05-N102 1
- Thrust Washer (for horn) 1
- 3P Cable 200mm 1
- Wrench Bolt WB M2.5X4 16
- Wrench Bolt WB M3X8 1
- Nut M2.5 18
- Compatible Products
- Controller : CM-5, CM-510, CM530, CM-700, OpenCM9.04(+ OpenCM485 Expansion Board), OpenCR
- Interface : USB2Dynamixel, U2D2
- Baud Rate: 57600bps
**NOT compatible with the HN05-N101 Set / T101 Set (for RX-64)**
(User can change various settings including ID and baud rate according to environment)
Links

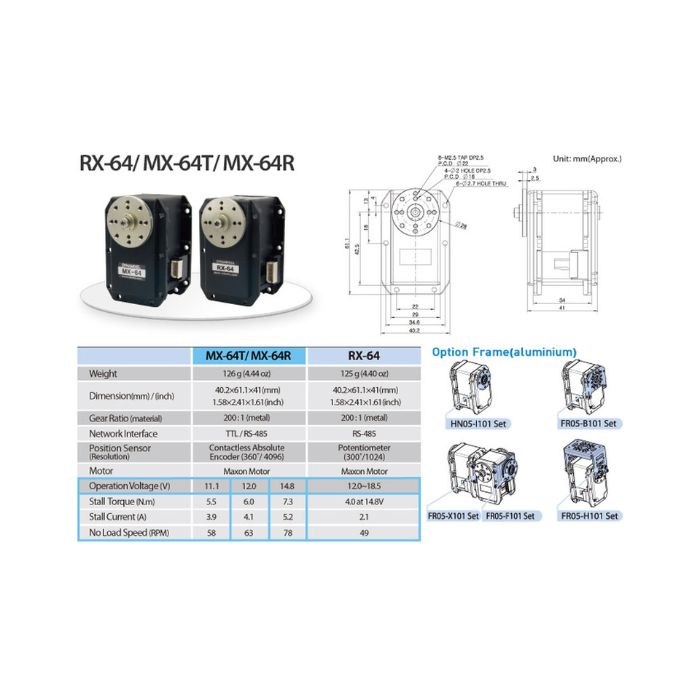

Specification
| Model Name | MX-64T | |
|---|---|---|
| MCU | Cortex-M3 (72 [Mhz], 32 [bit]) | |
| Input Voltage | Min. [V] | 10.0 |
| Recommended [V] | 12.0 | |
| Max. [V] | 14.8 | |
| Performance Characteristics | Voltage [V] | 12.0 |
| Stall Torque [N·m] | 6.00 | |
| Stall Current [A] | 4.1 | |
| No Load Speed [rpm] | 63.0 | |
| No Load Current [A] | 0.15 | |
| Continuous Operation | Voltage [V] | - |
| Torque [N·m] | - | |
| Speed [rpm] | - | |
| Current [A] | - | |
| Resolution | Resolution [deg/pulse] | 0.0879 |
| Step [pulse/rev] | 4,096 | |
| Angle [degree] | 360 | |
| Position Sensor | Contactless absolute encoder (12 [bit], 360 [deg]) Maker : ams(www.ams.com), Part No : AS5045 |
|
| Operating Temperature | Min. [°C] | -5 |
| Max. [°C] | 80 | |
| Motor | Coreless (Maxon) | |
| Baud Rate | Min. [bps] | 8,000 |
| Max. [bps] | 4,500,000 | |
| Control Algorithm | PID | |
| Gear Type | Spur | |
| Gear Material | Metal | |
| Case Material | Engineering Plastic | |
| Dimensions (WⅹHⅹD) [mm] | 40.2 X 61.1 X 41 | |
| Dimensions (WⅹHⅹD) [inch] | 1.58 X 2.41 X 1.61 | |
| Weight [g] | 126.00 | |
| Weight [oz] | 4.44 | |
| Gear Ratio | 16:31:00 | |
| Command Signal | Digital Packet | |
| Protocol Type | Half duplex Asynchronous Serial Communication (8bit, 1stop, No Parity) | |
| Link (Physical) | TTL Level Multi Drop Bus | |
| ID | 0 ~ 253 | |
| Feedback | Position, Temperature, Load, Input Voltage, etc | |
| Protocol Type | Protocol 1.0(Default) Protocol 2.0 | |
| Operating Mode / Angle | Wheel Mode： Endless turn Joint Mode：360 [deg] Multi-turn Mode：±28 [rev] |
|
| Output [W] | - | |
| Standby Current [mA] | 100 | |
