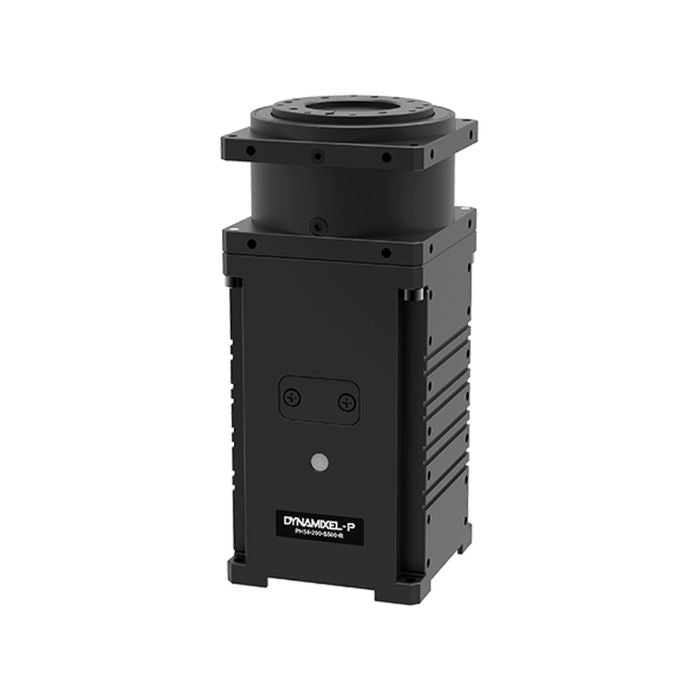

DYNAMIXEL PH54-200-S500-R
- 7 Days Return Policy*
- In stock, ready to ship
Product Addon
BT-210
$39.30
BT-210 Set
$78.60
PRODUCT DESCRIPTION
**This product has a lead time of 2-5 months.**
Features
DYNAMIXEL is a robot exclusive smart actuator with fully integrated DC Motor + Controller + Driver + Sensor + Reduction Gear + Network in one DC servo module.
DYNAMIXEL-P Series implements removable reduction cycloid gears, resulting in high precision and impact resistance.
- Torque control based on current sensing
- Position, Torque, and Speed-based command
- High resolution with a combination of Incremental Encoder and Contactless Absolute Encoder
- Full-metal housing for high durability
- Can be used to make a full-size manipulator, pan tilt, humanoid, etc.
[DYNAMIXEL PRO -> P] Upgrade Details
- Improved design and JST connectors applied
- Improved dirt inflow and leakage
- Improved control table (Supports X Series functions)
- Enhanced control performance such as responsiveness and resolution
- Enhanced communication responsiveness
- Improved heat, noise, and durability
Performance Comparison
Caution
The operational voltage is different from other DYNAMIXEL series (Operational voltage: 24V).
Depending on the number of units used, it is recommended to use a separate power supply.
JST 4Pin connector is applied for communication.
The 54-series can NOT use the old hinge frames.
NOT COMPATIBLE with FRP54-H110/120/210/220)
Specification
| Model Name | PH54-200-S500-R | |
|---|---|---|
| MCU | Cortex-M4 (168 [Mhz], 32 [bit]) | |
| Input Voltage | Min. [V] | - |
| Recommended [V] | 24.0 | |
| Max. [V] | - | |
| Performance Characteristics | Voltage [V] | 24.0 |
| Stall Torque [N·m] | - | |
| Stall Current [A] | - | |
| No Load Speed [rpm] | 33.1 | |
| No Load Current [A] | 1.65 | |
| Continuous Operation | Voltage [V] | 24.0 |
| Torque [N·m] | 44.7 | |
| Speed [rpm] | 29.0 | |
| Current [A] | 9.3 | |
| Resolution | Resolution [deg/pulse] | 0.0004 |
| Step [pulse/rev] | 1,003,846 | |
| Angle [degree] | 360 | |
| Position Sensor | Contactless absolute encoder Incremental encoder | |
| Operating Temperature | Min. [°C] | -5 |
| Max. [°C] | 55 | |
| Motor | BLDC (Maxon) | |
| Baud Rate | Min. [bps] | 9,600 |
| Max. [bps] | 10,500,000 | |
| Control Algorithm | PID | |
| Gear Type | Cycloid | |
| Gear Material | Metal | |
| Case Material | Metal | |
| Dimensions (WⅹHⅹD) [mm] | 54.0 X 126.0 X 54.0 | |
| Dimensions (WⅹHⅹD) [inch] | 2.13 x 4.96 x 2.13 | |
| Weight [g] | 855.00 | |
| Weight [oz] | 30.16 | |
| Gear Ratio | 501.9: 1 | |
| Command Signal | Digital Packet | |
| Protocol Type | Half-duplex Asynchronous Serial Communication (8bit, 1stop, No Parity) | |
| Link (Physical) | RS485 Multi-Drop Bus | |
| ID | 0 ~ 252 | |
| Feedback | Position, Velocity, Current, Temperature, Voltage, External Port, etc | |
| Protocol Type | Protocol 2.0 Modbus | |
| Operating Mode / Angle | Current Control mode： Endless turn Velocity Control mode： Endless turn Position Control Mode：360 [deg] Extended Position Control Mode PWM Control Mode： Endless turn |
|
| Output [W] | 200 | |
| Standby Current [mA] | 40 | |
