PRODUCT DESCRIPTION
Features

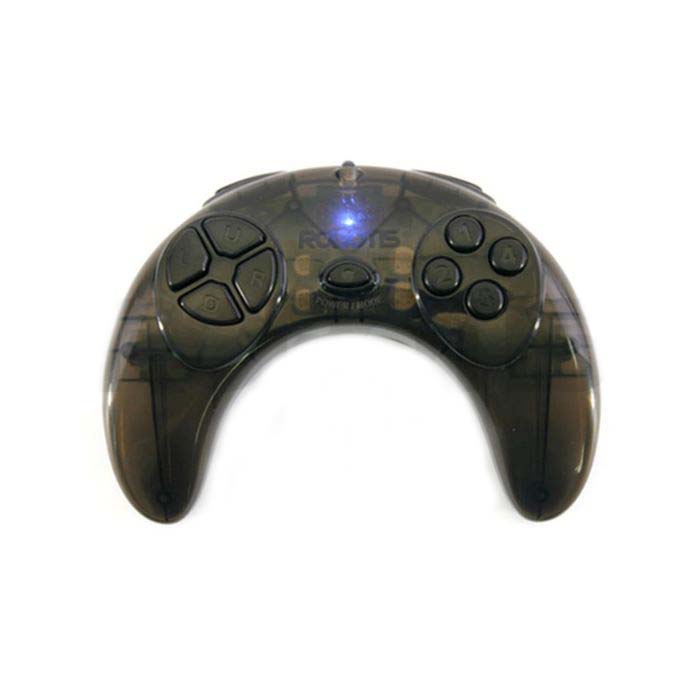

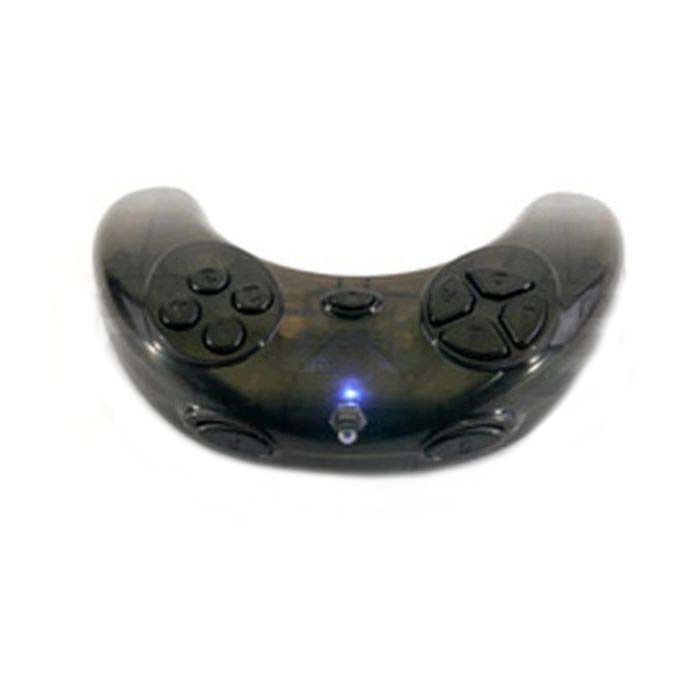

A remote controller for controlling ROBOTIS Robots.
- Addition of exclusive connector for installing BT-210.
- Supports IR, Zigbee, and Bluetooth communications.
Unlike other products whose circuits/batteries are exposed, the circuits of the RC-100B are protected in a case to promote safety.
When the controller is not used for a specific duration, the RC-100B automatically triggers a power-saver mechanism and turns the controller off to conserve the battery.
The 10 buttons on the controller support up to 1023 different button combinations.
Each button has its own output signal, therefore the user only needs to program the motions to correspond to the designated RC-100B button.
Package Components
- RC-100B: 1
- Instructions: 1
* Does not include: AA battery, IRreceiver, Wireless Modules (ZIGBee, Bluetooth)
H/W Specifications
Weight: 80g
Dimensions: 138mm x 105mm x 36mm
Power
- Operating Voltage: 3V (DC)
- Power Consumption: 0.07W
- Battery: Alkaline (LR6) AA Battery x 2
Input Buttons
- 11 (Includes power/Mode button)
- 1023 different button combinations are supported.
Communication Method
- IR communication (basic)
- Zigbee communication (Automatically switches to ZIG-100 upon mounting the device)
- Bluetooth communication (Automatically switches to BT-100 upon mounting the device)
IR Communication
- IR receiver IR-10
Zigbee Communication
- ZIG-100Set (CM-5, CM-2+ user)
- ZIG-110ASet (CM-100/510/530/700 user)
Bluetooth Communication
- BT-110ASet (Discontinued)
- BT-100 + BT-210 Set
- BT-410
Caution
- Does not support IR communication with AX-S1.

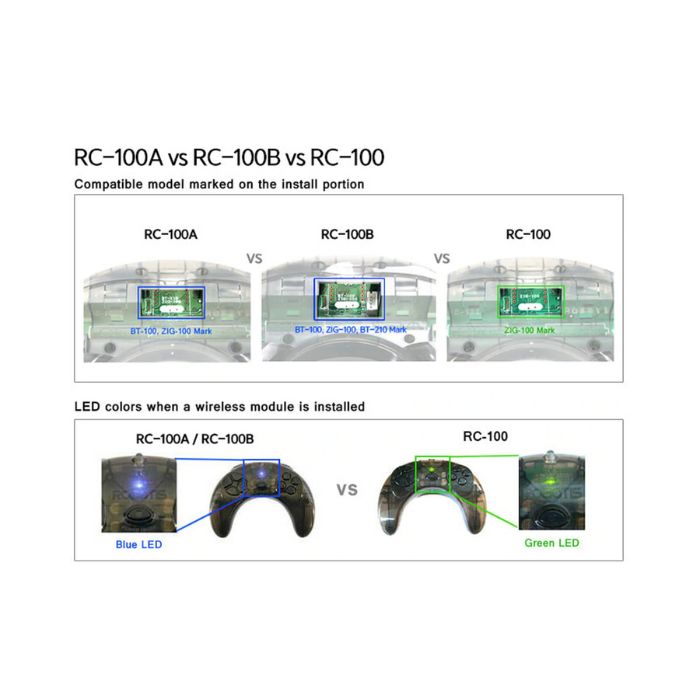

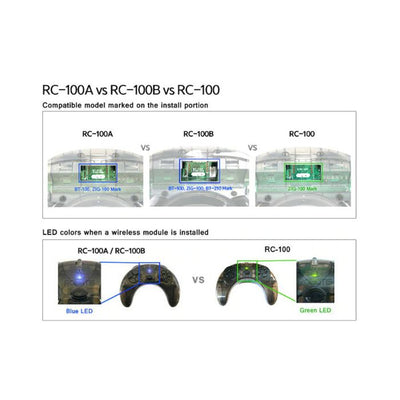

- RC-100A / 100B Comparison RC - 100
Mounted Wireless Module
- (ZIG-100/BT-100)
Available Wireless Module
- O ZIG - 100 SET O
- O ZIG - 110 SET O
- O ZIG - 110A SET O
- O BT - 110A SET X
- O BT - 100A + BT - 210 SET X
Manual for RC-100B ROBOTIS controller: https://bit.ly/3bOW8Nd
