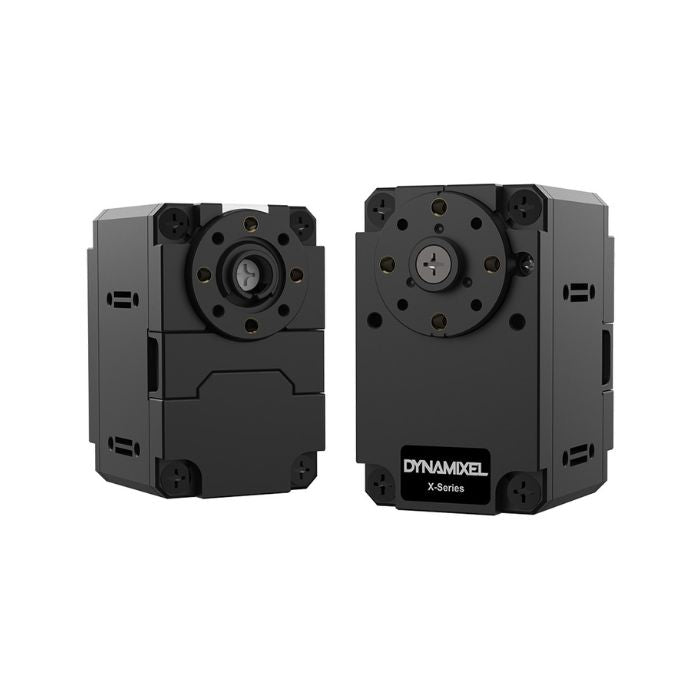

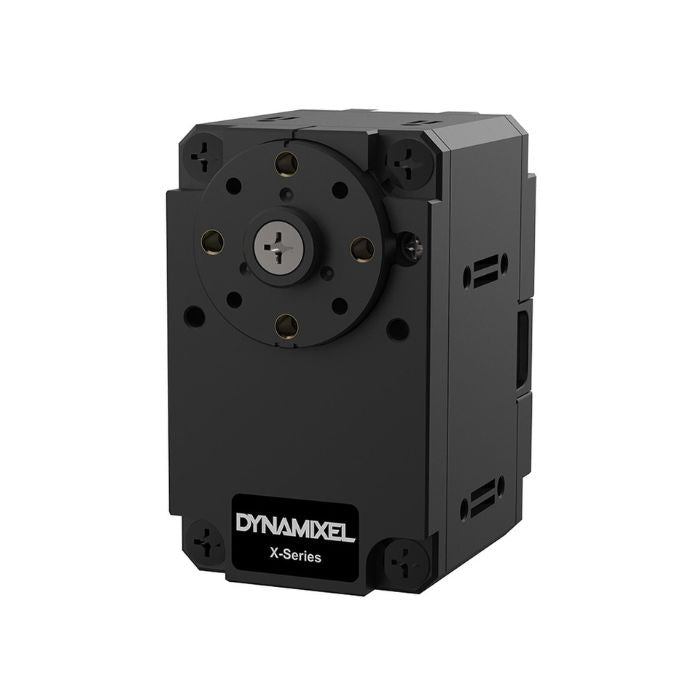

ROBOTIS DYNAMIXEL XL430-W250-T
ROBOTIS DYNAMIXEL XL430-W250-T

ROBOTIS DYNAMIXEL XL430-W250-T

No reviews
Regular price$49.90
/
Shipping calculated at checkout.

  • 7 Days Return Policy*
  • In stock, ready to ship
  • Inventory on the way

Product Addon

BT-210

$39.30

BT-210 Set

$78.60

BT-410 Set

$47.60

PRODUCT DESCRIPTION

Features

DYNAMIXEL is a robot exclusive smart actuator with fully integrated DC Motor + Controller + Driver + Sensor + Reduction Gear + Network in one DC servo module.

 The DYNAMIXEL XL series adopts new features that allow 360 degrees control mode with its contactless magnetic encoder and hollow back case assembly structure. The XL series has the same mechanical structure as the XM430 and XH430 and is compatible with the respective models.

  1. Various Operating Modes

      (Velocity Control, Position Control, Extended Position Control, PWM Control)

  1. Profile Control for Smooth Motion Planning
  2. Hollow Back Case Minimizes Cable Stress (3-way-routing)
  3. Easy and Simple Assembly Structure
  4. Energy Saving with Reduced Current



Various Cabling Methods

Drawing

Drawing Download

Compatible Products

Caution

DYNAMIXEL-X Series cable assembly through hollow case



Organize the entangled cable before assembling the back case.

Do not assemble the back case with entangled cable. The entangled cable can be squashed by the case and cause communication error.

If you use two cables through the hollow case, the cables will be damaged.

Use only one cable through the hollow case.



The DYNAMIXEL-X Series adopted a new gold-plated JST connector for secure and reliable communication.

The connector used for the previous DYNAMIXEL is Molex.



To control DYNAMIXEL-X Series actuators via OpenCM or USB2Dynamixel, please use the JST-Molex Convertible Cable enclosed in the package.



However, the Molex-JST convertible cable is NOT included in the XL430 model.



Please purchase a convertible cable when using a controller and interface that supports the JST connector.

Installation Example

Specification

Model Name XL430-W250-T
MCU Cortex-M3 (72 [Mhz], 32 [bit])
Input Voltage Min. [V] 6.5
Recommended [V] 11.1
Max. [V] 12.0
Performance Characteristics Voltage [V] 12.0
Stall Torque [N·m] 1.50
Stall Current [A] 1.4
No Load Speed [rpm] 61.0
No Load Current [A] 0.15
Continuous Operation Voltage [V] -
Torque [N·m] -
Speed [rpm] -
Current [A] -
Resolution Resolution [deg/pulse] 0.0879
Step [pulse/rev] 4
Angle [degree] 360
Position Sensor Contactless absolute encoder (12Bit, 360 [deg])
Maker : ams(www.ams.com), Part No : AS5601
Operating Temperature Min. [°C] -5
Max. [°C] 72
Motor Cored
Baud Rate Min. [bps] 9,600
Max. [bps] 4,500,000
Control Algorithm PID
Gear Type Spur
Gear Material Engineering Plastic
Case Material Engineering Plastic
Dimensions (WⅹHⅹD) [mm] 28.5 X 46.5 X 34.0
Dimensions (WⅹHⅹD) [inch] 1.12 X 1.83 X 1.34
Weight [g] 57.00
Weight [oz] 2.02
Gear Ratio 258.5 : 1
Command Signal Digital Packet
Protocol Type Half duplex Asynchronous Serial Communication (8bit, 1stop, No Parity)
Link (Physical) TTL Level Multi Drop Bus
ID 0 ~ 252
Feedback Position, Velocity, Load, Realtime tick, Trajectory, Temperature, Input Voltage, etc.
Protocol Type Protocol 1.0
Protocol 2.0(Default)
Operating Mode / Angle Velocity Control mode: Endless turn
Position Control Mode:360 [deg]
Extended Position Control Mode:±256 [rev]
PWM Control Mode: Endless turn
Output [W] -
Standby Current [mA] 52

Package Components XL430-W250-T 1 HN11-N101 (Pre-assembled) 1 Robot Cable-X3P 180mm 1 Bolt (M2.6*5) TAP 5 Bolt (M2*5) 5 Bolt (PHS M2.5x14) 5 Spacer 5 Not included Idler Set (HN11-I101 Set)
