Low-Profile Industrial Delivery Robot
PUDU T600 Underride brings a low-profile chassis to compatible rack and load-handling workflows. The 600 kg-rated platform uses LiDAR SLAM and a 60 mm lifting stroke, offering a different form factor from the upright T600.
Why Choose PUDU T600 Underride?
- A low-profile 255 mm body fits compatible underride handling applications.
- The maximum rated payload is 600 kg under specified conditions.
- A 60 mm lifting stroke supports compatible rack interfaces.
- LiDAR SLAM provides the published navigation method for this configuration.
Applications to Evaluate

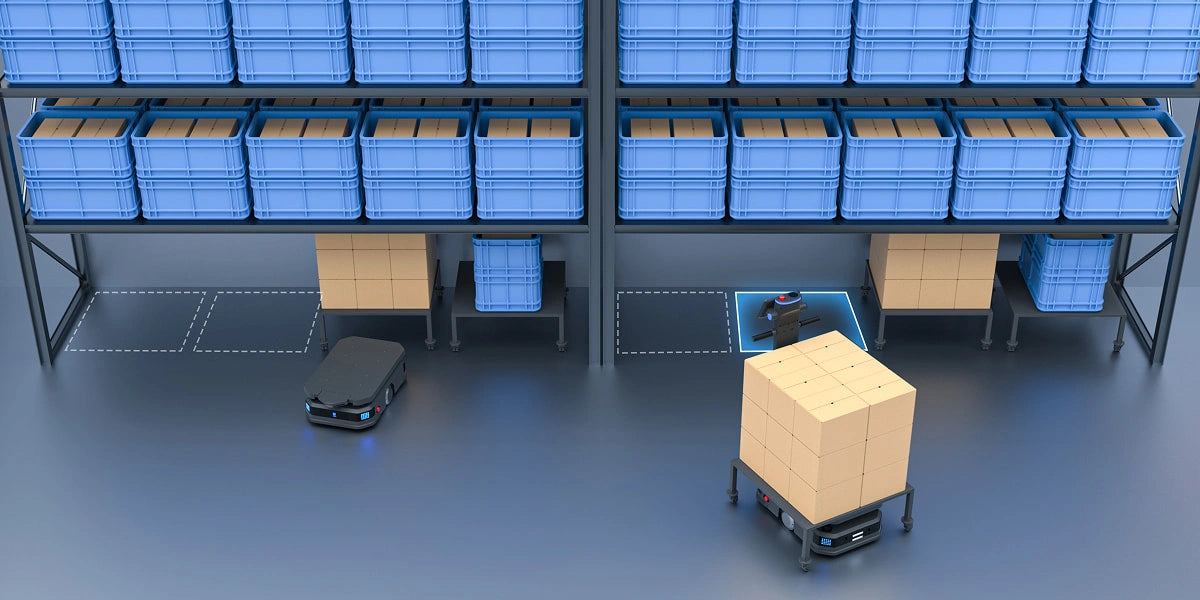

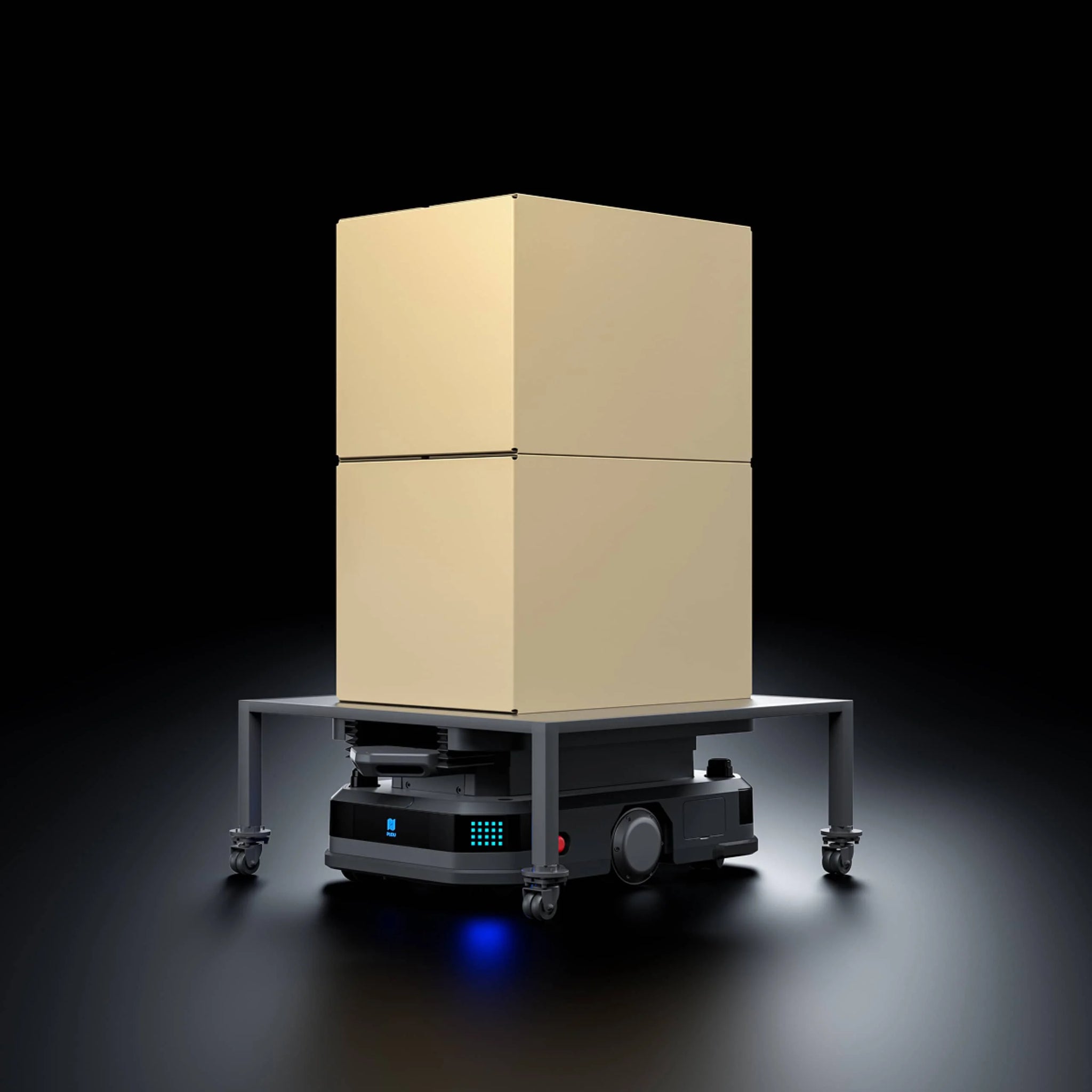

- Compatible rack pickup and movement
- Low-profile industrial material transport
- Warehouse and production logistics projects
Technical Specifications
PUDU T600 Underride
| Model Number | WTIDU2 |
|---|---|
| Dimensions | 845 mm * 500 mm * 255 mm (33.3 in * 19.7 in * 10.0 in) |
| Weight | 94 KG (208 lbs) |
| Maximum load | 600 KG (1322 lbs) |
| Lifting Height | 60mm (2.36 in) |
| Battery Capacity | 30 AH |
| Charging Time | 2 H (from 0% to 90%) |
| Run-time | 12 H (no load) |
| Cruise Speed | 0.2~1.2 m/s (0.67~3.94 ft/s) |
| Navigation Method | LiDAR SLAM only |
| Minimum Passability | 65 cm (25.6 in) |
| Max. surmountable height | 10mm (0.39 in) |
| Max. surmountable gap | 35 mm (1.38 in) |
| Operating Environment | 0°C ~ 40°C (32°F ~ 104°F) |
Manufacturer-published specifications are shown for comparison. Runtime, coverage, payload, navigation, and cleaning results depend on configuration and operating conditions. Confirm the selected model and included options before ordering.
Deployment Planning
Measure rack under-clearance, pickup geometry, lifting requirements, load stability, maneuvering envelope, floor condition, and safety zones. Loaded clearance depends on the carrier and payload, not just the robot width.
Frequently Asked Questions
Can the upright T600 specifications be used for Underride?
No. T600 Underride has its own dimensions, weight, navigation method, and minimum passage specification. Use the variant-specific data on this page.
Can I order online?
Yes. Select your configuration and quantity, then add the robot to your cart to check out at the displayed price. Contact Useabot before ordering if you need confirmation of accessories, deployment requirements, delivery timing, training, or applicable warranty terms.
Talk With a Useabot Robotics Specialist
Discuss your intended workflow and site requirements before selecting PUDU T600 Underride. Ask a product or deployment question.
Product information source: Pudu Robotics PUDU T600 Underride specifications.
